DFN 30

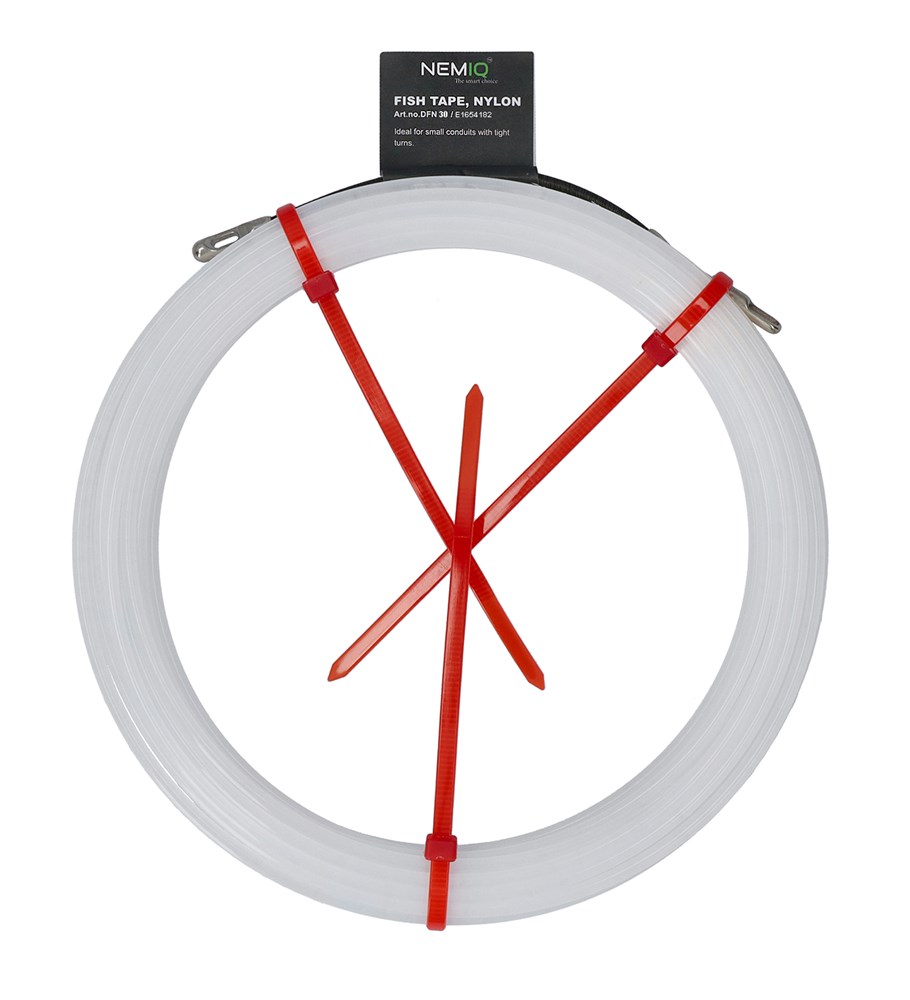

FISH TAPE NYLON 30M Ø 4mm, ROUND HEAD
DFN 30
- Availability:
-
Yes
- Total: 1
Related items
Fish tape, nylon
Ideal for small conduits with tight turns. One of the main advantages of a nylon fish tape is its ability to pass through narrow pipes. With its rounded head, the spring smoothly passes through obstacles, effectively preventing it from getting stuck or hooked.
Comes with a replaceable head, extra heads for special applications are available in the DFA KIT.
Tensile strength: 1000N
Available in lengths of 5, 10, 15, 20, 25, and 30 meters.
Diameter: 4 mm
- Total: 1
E1654182
Product Properties
| Application range | Installation tube |
|---|---|
| Head form | Ring |
| Thread connection | No |
| Twisted | No |
| Material quality | Polyamide (PA) |
| Shape | Round |
| Material | Plastic |
Dimensions
| Width/diameter draw-in wire | 4 mm |
|---|---|
| Material thickness draw-in wire | 4 mm |
| Diameter of coil/ring | 215 mm |
| MOQ | 1 . |
| Unit | pcs |
| Length | 30 m |
Logistics
| Barcode | 733117641332 |
|---|---|
| Country of origin | SE |
| E-no | E1654182 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | DFN 30 |
| Taric code | 82054000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000167 - Cable pulling system |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Draw wires |
| Search Description | E1600184. ENR202009 SKH2023TOBIAS2 E1600184 |
| Alternative SKU | DFN30 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
