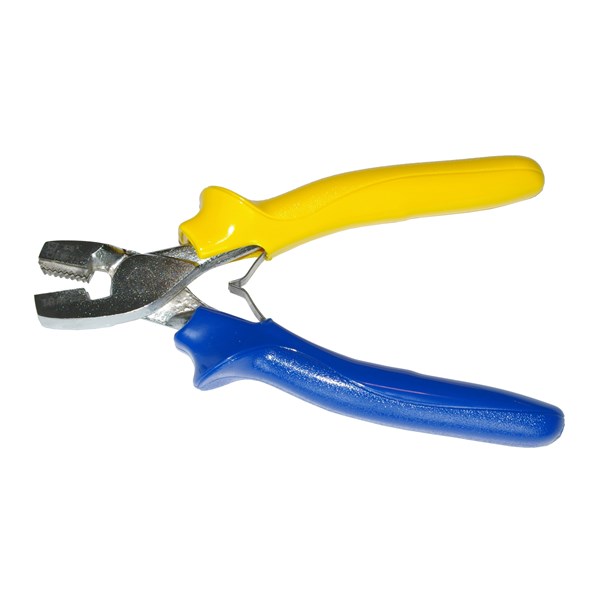

EAP 120
With return spring for quicker handling.
Front crimping.
Crimps end-sleeves:
Single end-sleeve: 0.25-2.5 mm² and 4.0-6.0 mm²
Twin end-sleeves: 0.5-4.0 mm²
Type of crimping: Trapezoid crimp
Length: 180 mm
Technical properties
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves, End sleeve, Twin, Ändhylsor, Twin
- Compression shape:
- Trapezoid compression
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| CRIMPING TOOL END SLEEVES, TRAPEZIOD SINGLE 0.25-6.0mm2, TWIN 0.5-4.0mm2, FRONT FEED | 0.25-6 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| CRIMPING TOOL END SLEEVES, TRAPEZIOD SINGLE 0.25-6.0mm2, TWIN 0.5-4.0mm2, FRONT FEED |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRIMPING TOOL END SLEEVES, TRAPEZIOD SINGLE 0.25-6.0mm2, TWIN 0.5-4.0mm2, FRONT FEED | No | No | 1 . | No | 2 s | Cable end sleeves | Mechanical | End sleeves, End sleeve, Twin, Ändhylsor, Twin | Trapezoid compression |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CRIMPING TOOL END SLEEVES, TRAPEZIOD SINGLE 0.25-6.0mm2, TWIN 0.5-4.0mm2, FRONT FEED | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (return spring) | EAP120 |
Yes
|
|
|
- Total: 1
