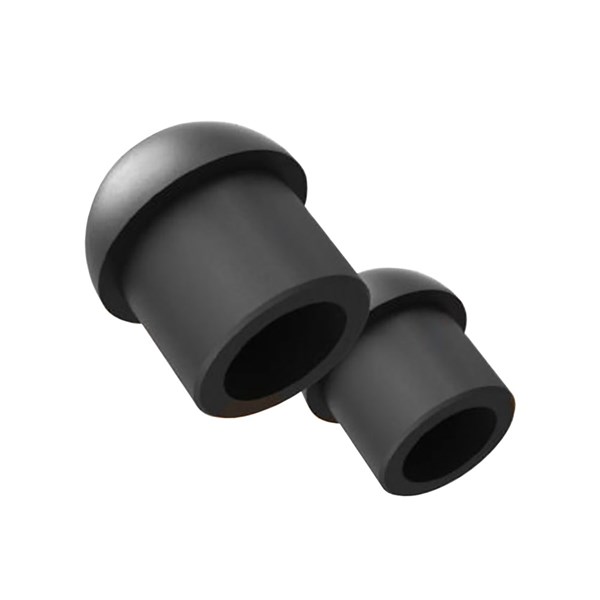

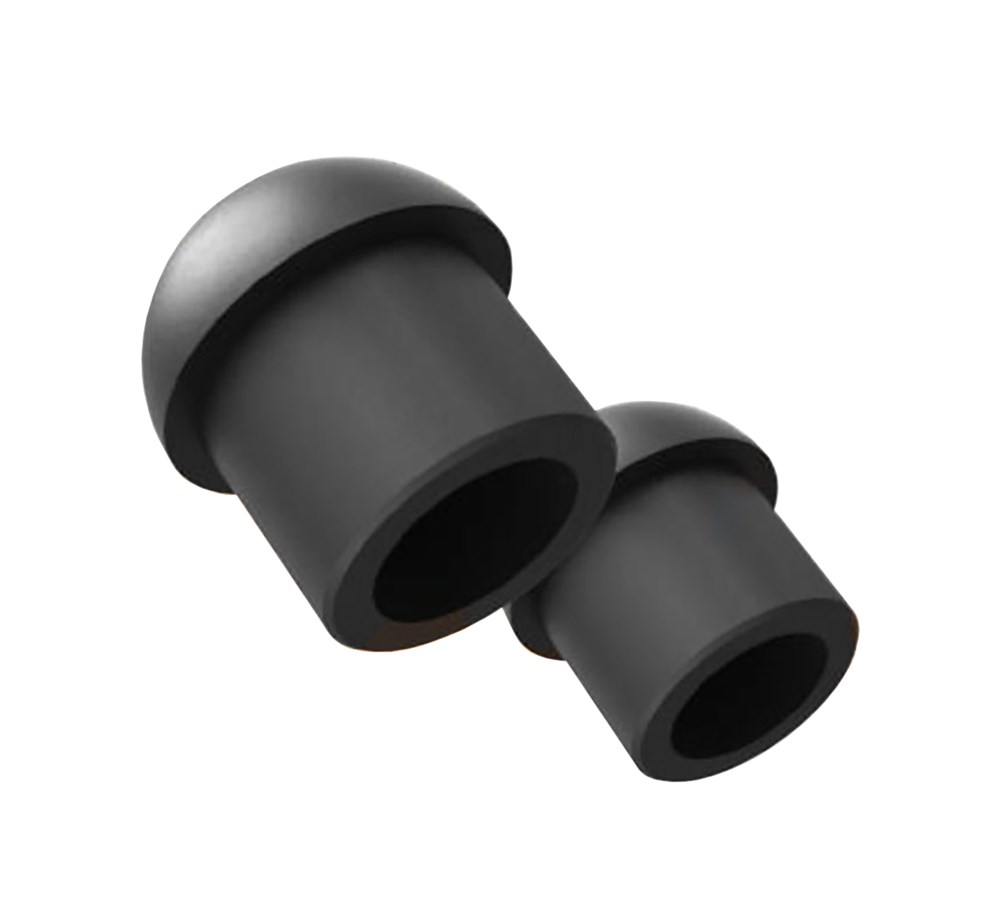

Dome Plugs
Sealing of cable glands when no cable is used.
Technical properties
- Pressure-compensating:
- No
- Colour:
- Black
- Surface protection:
- Untreated
- Material:
- Plastic
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents

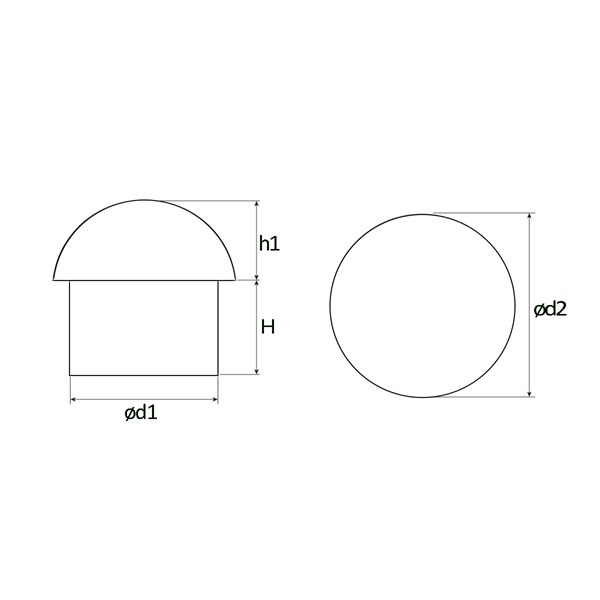

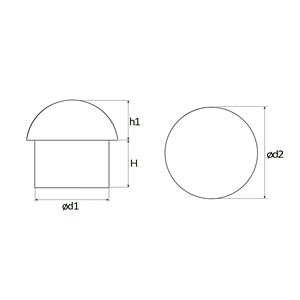

Dimensions
- Total: 4
| Product Description | H | h1 | Ød1 | Ød2 | MOQ | Unit | Pitch thread | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TÄTNINGSPLUGG PG7, M12, D=6.4, SVART | 12 mm | 4 mm | 6.4 mm | 9.2 mm | 1000 . | pcs | 0 N/A | N/A |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=5.0, SVART | 14 mm | 5 mm | 5 mm | 10.5 mm | 1000 . | pcs | 0 N/A | N/A |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=8.0, SVART | 13.7 mm | 4.7 mm | 8 mm | 10.5 mm | 1000 . | pcs | 0 N/A | N/A |
No
|
|
|
| TÄTNINGSPLUGG PG11, M16, D=9.7, SVART | 9 mm | 5.3 mm | 9.7 mm | 13.3 mm | 800 . | pcs | 0 N/A | N/A |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Availability | ||
|---|---|---|---|
| TÄTNINGSPLUGG PG7, M12, D=6.4, SVART |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=5.0, SVART |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=8.0, SVART |
No
|
|
|
| TÄTNINGSPLUGG PG11, M16, D=9.7, SVART |
No
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Pressure-compensating | Colour | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|
| TÄTNINGSPLUGG PG7, M12, D=6.4, SVART | No | Black | Untreated | Plastic |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=5.0, SVART | No | Black | Untreated | Plastic |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=8.0, SVART | No | Black | Untreated | Plastic |
No
|
|
|
| TÄTNINGSPLUGG PG11, M16, D=9.7, SVART | No | Black | Untreated | Plastic |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| TÄTNINGSPLUGG PG7, M12, D=6.4, SVART | EC000032 - Plug for cable screw gland | 9.0 | Plug | DP09-6.4X12.0-B |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=5.0, SVART | EC000032 - Plug for cable screw gland | 9.0 | Plug | DP11-5.0X14.0-B |
No
|
|
|
| TÄTNINGSPLUGG PG9, M16, D=8.0, SVART | EC000032 - Plug for cable screw gland | 9.0 | Plug | DP11-8.0X13.7-B |
No
|
|
|
| TÄTNINGSPLUGG PG11, M16, D=9.7, SVART | EC000032 - Plug for cable screw gland | 9.0 | Plug | DP13-9.7X9.0-B |
No
|
|
|
- Total: 4
