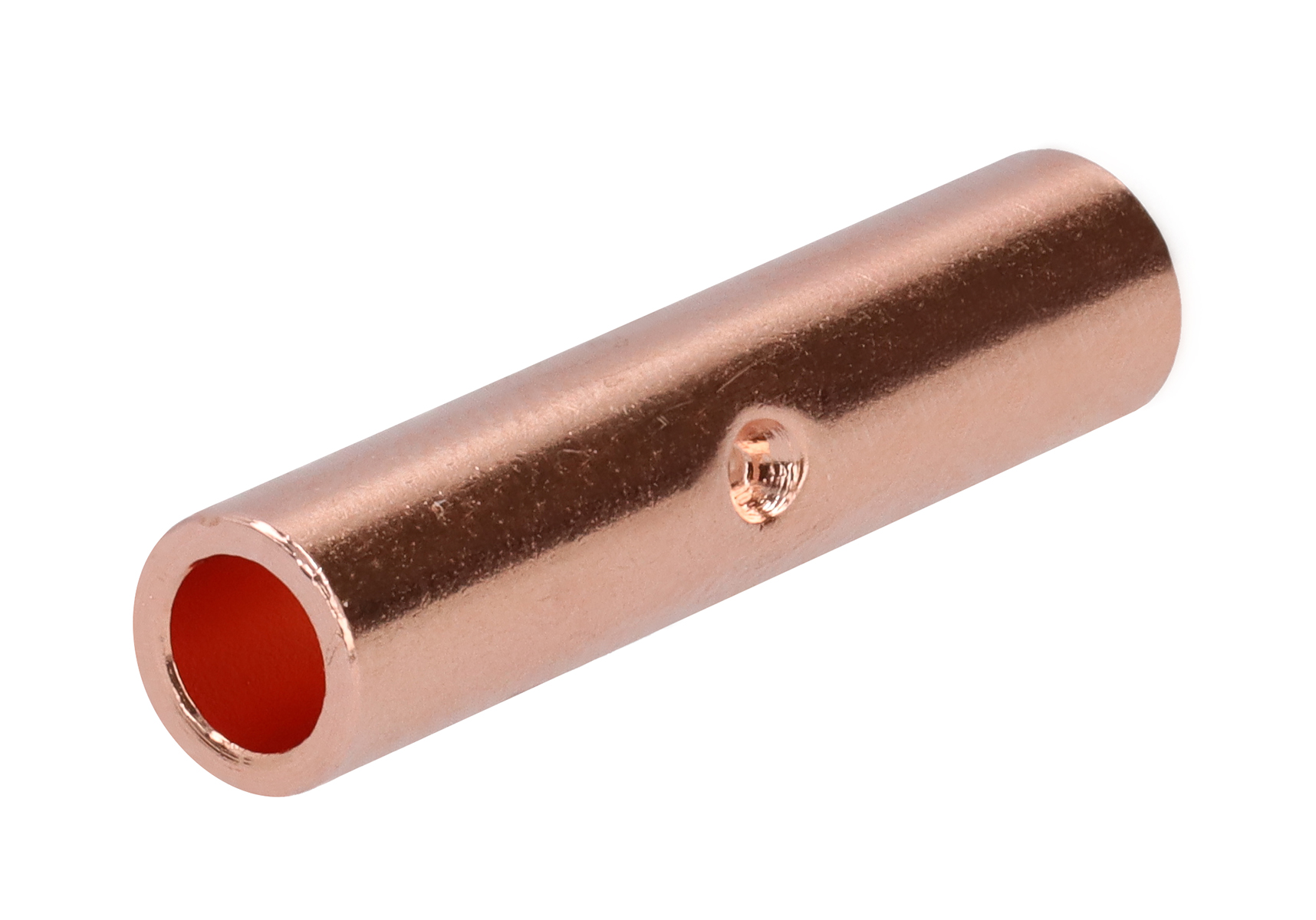

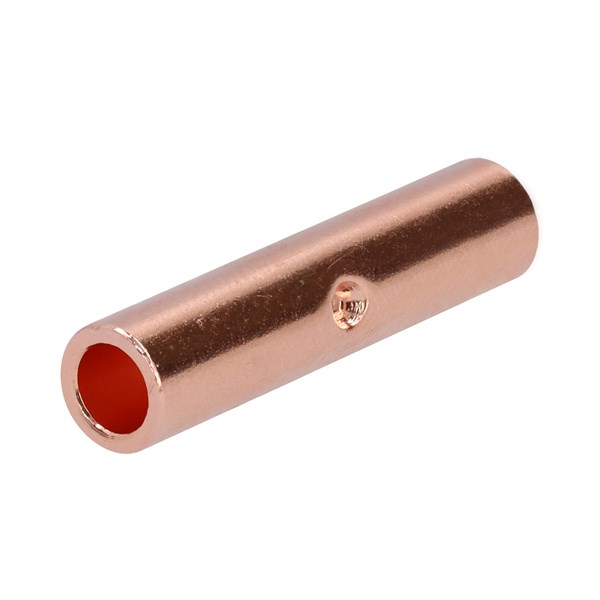

CUT - Skarvhylsa för jordlina 1.5-25mm²
Connectors for solid copper conductors
Material: 99.9% pure copper
Technical properties
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Model:
- Standard version
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- No
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Bare
- Material:
- Copper
- Series:
- CUT
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
CE Declaration of Conformity KRF, KRT, KRD, KSF, KST, KSD, CUT from 10mm2 to 630mm2
Conflict Minerals Reporting Template Version 6.31_Approved

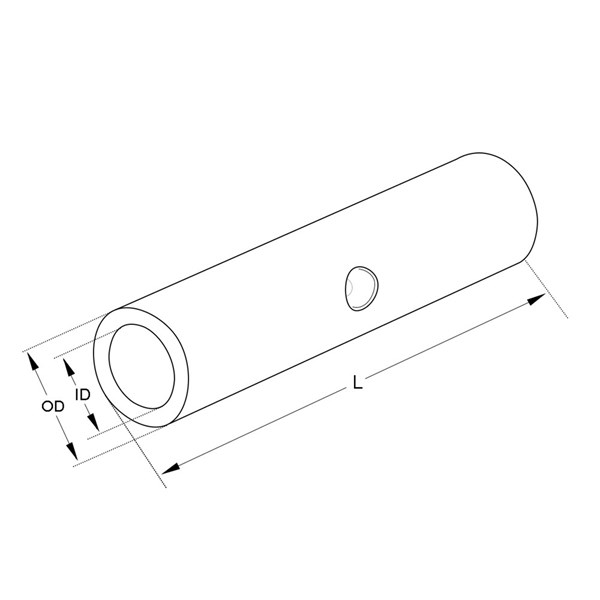

Dimensions
- Total: 3
| Product Description | ID | OD | L | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPLICE, CUT, SINGLE CORE 6.0mm2, NO PLATING | 3 mm | 5 mm | 27 mm | 100 . | pcs | 6 mm² |
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 10mm2, NO PLATING | 4 mm | 6 mm | 27 mm | 100 . | pcs | 10 mm² |
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 16mm2, NO PLATING | 5 mm | 8 mm | 35 mm | 100 . | pcs | 16 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| SPLICE, CUT, SINGLE CORE 6.0mm2, NO PLATING |
|
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 10mm2, NO PLATING |
|
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 16mm2, NO PLATING |
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 1 conductor | Suitable for Class 2 conductor | Model | Number of branches | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Max Temp | Surface protection | Material | Series | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICE, CUT, SINGLE CORE 6.0mm2, NO PLATING | Yes | Yes | Standard version | 0 N/A | None | N/A | Short | Yes | Yes | No | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Bare | Copper | CUT |
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 10mm2, NO PLATING | Yes | Yes | Standard version | 0 N/A | None | N/A | Short | Yes | Yes | No | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Bare | Copper | CUT |
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 16mm2, NO PLATING | Yes | Yes | Standard version | 0 N/A | None | N/A | Short | Yes | Yes | No | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Bare | Copper | CUT |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SPLICE, CUT, SINGLE CORE 6.0mm2, NO PLATING | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Copper tube Splices | CUT6 |
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 10mm2, NO PLATING | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Copper tube Splices | CUT10 |
Yes
|
|
|
| SPLICE, CUT, SINGLE CORE 16mm2, NO PLATING | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Copper tube Splices | CUT16 |
Yes
|
|
|
- Total: 3
