KRT 95-12 BOCK

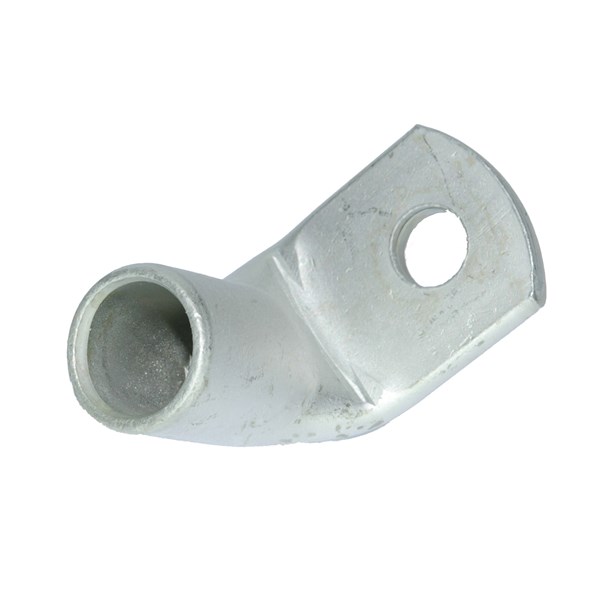

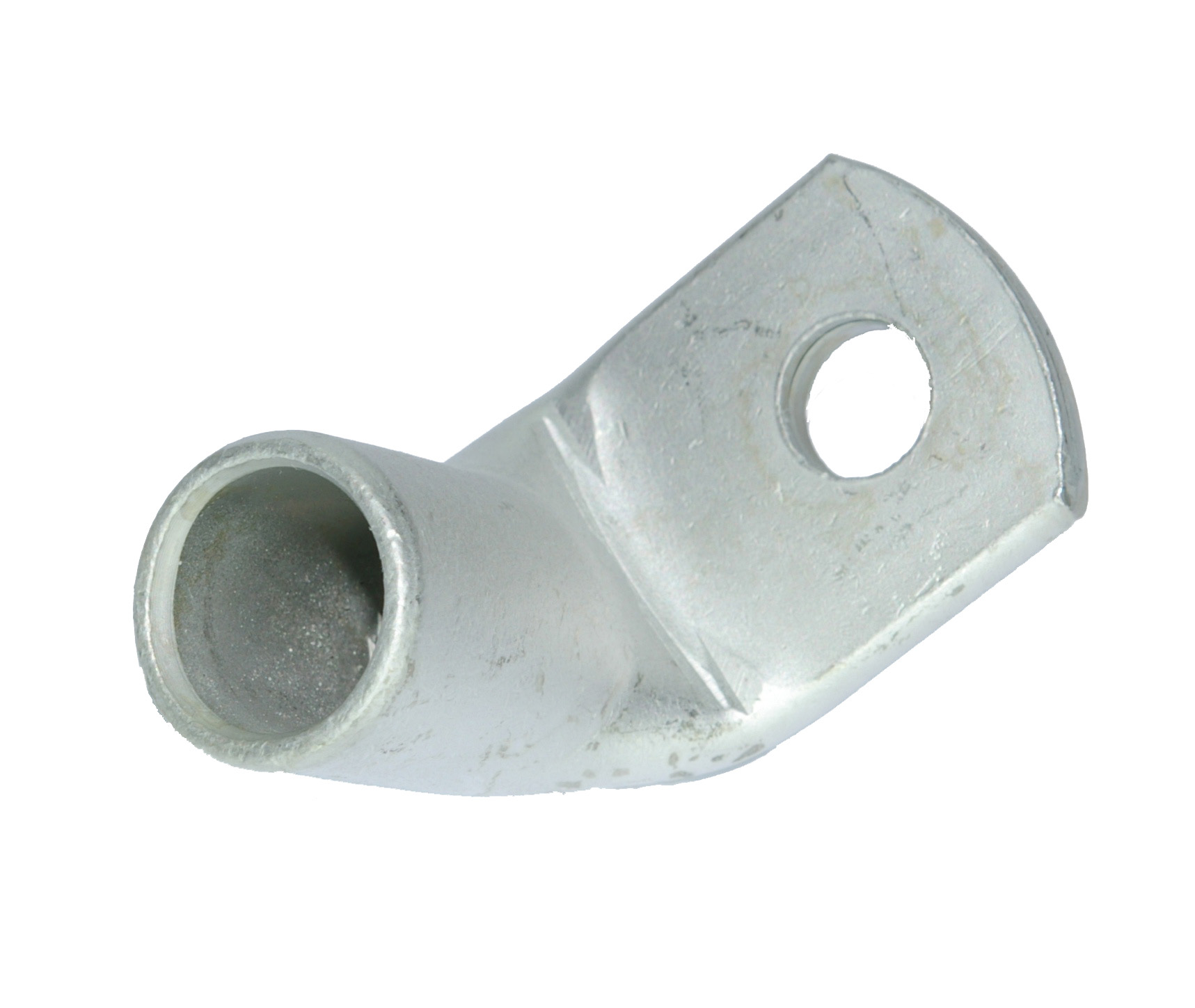

CABLE LUG KRT, -90GR 95mm2, M10
KRT 95-12 BOCK
- Availability:
-
Yes
- Total: 1
Related items
KRT - Cable lugs angled -90º
"Copper tube lugs for stranded (class 5) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4ยต Sn
Inscriptions on the lugs palm can for ie be: n35-12T
n = nemiq // 35 = 35 wire // 12 = M12 stud size. // T = KRT, F = KRF, D= KRD
Inscriptions on the lugs neck can for ie be: 13
13 = Outside diameter of the neck (OD).
When crimping with hexagon dies neck inscription and die markings must conform."
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Max. current (Imax) | 288 A |
| Max Temp | 150 °C |
| Surface protection | Tinned |
Dimensions
| HS | 13 mm |
|---|---|
| ID | 13.5 mm |
| OD | 18 mm |
| T | 4.5 mm |
| N | 24 mm |
| W | 26 mm |
| MOQ | 50 . |
| Unit | pcs |
Logistics
| Barcode | 733117638029 |
|---|---|
| Country of origin | SE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | KRT 95-12 BOCK |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable lugs, angled |
| Search Description | RÖRKABELSKO KRT, BOCKAD -90GR |
| Alternative SKU | KRT95-12BOCK |
Compliance
| REACH | No SVHC (Latest. 07 Nov 2024) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
