AE 1525 SK

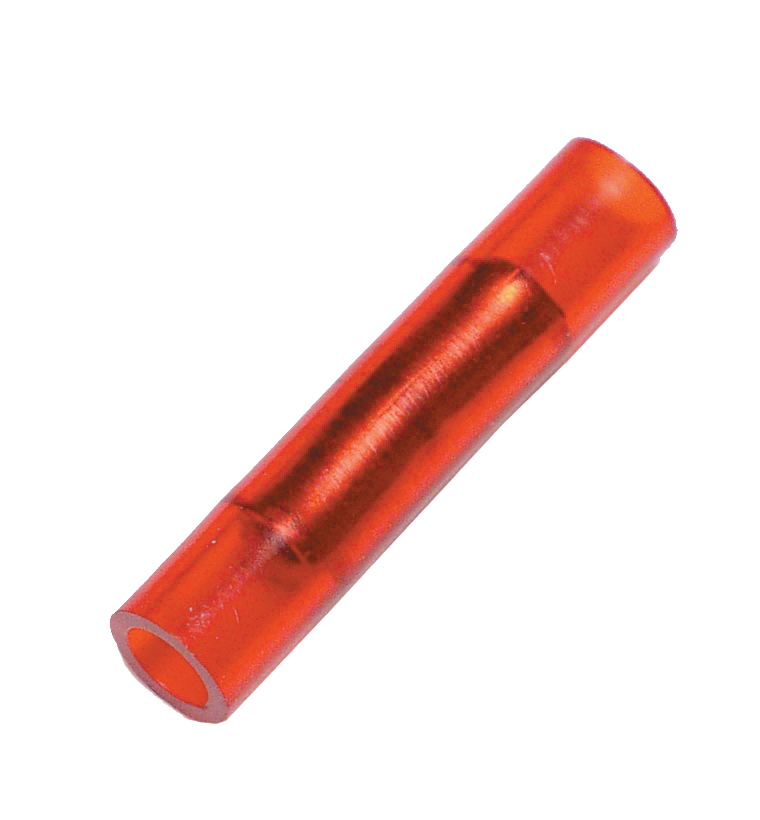

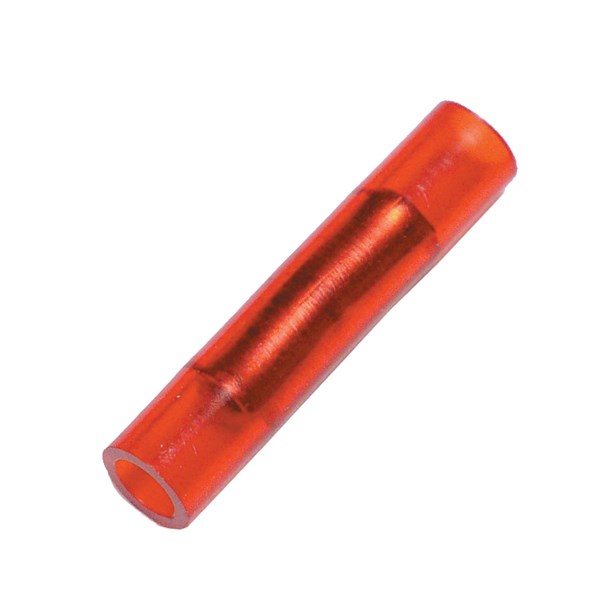

INSULATED BUTT SPLICE RED, 24mm
AE 1525 SK
- Availability:
-
Yes
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | UL model |
| Number of branches | 0 N/A |
| Colour insulation | Red |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 600 V |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Surface protection | Tinned |
| Material insulation | Polycarbonate (PC) |
| Operating temperature | -150-105 °C |
| Material | Copper |
| Voltage max | 600V |
| Packaging | Loose piece |
Dimensions
| ID | 3.4 mm |
|---|---|
| L | 24 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.5-1.5 mm² |
Logistics
| Barcode | 739348700481 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | AE 1525 SK |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Elpress |
| Product Group | Butt Splices - Polycarbonate |
| Alternative SKU | AE1525SK |
Compliance
| REACH | No SVHC (235 Subs. 14 June 2023) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
