BN 6053 R

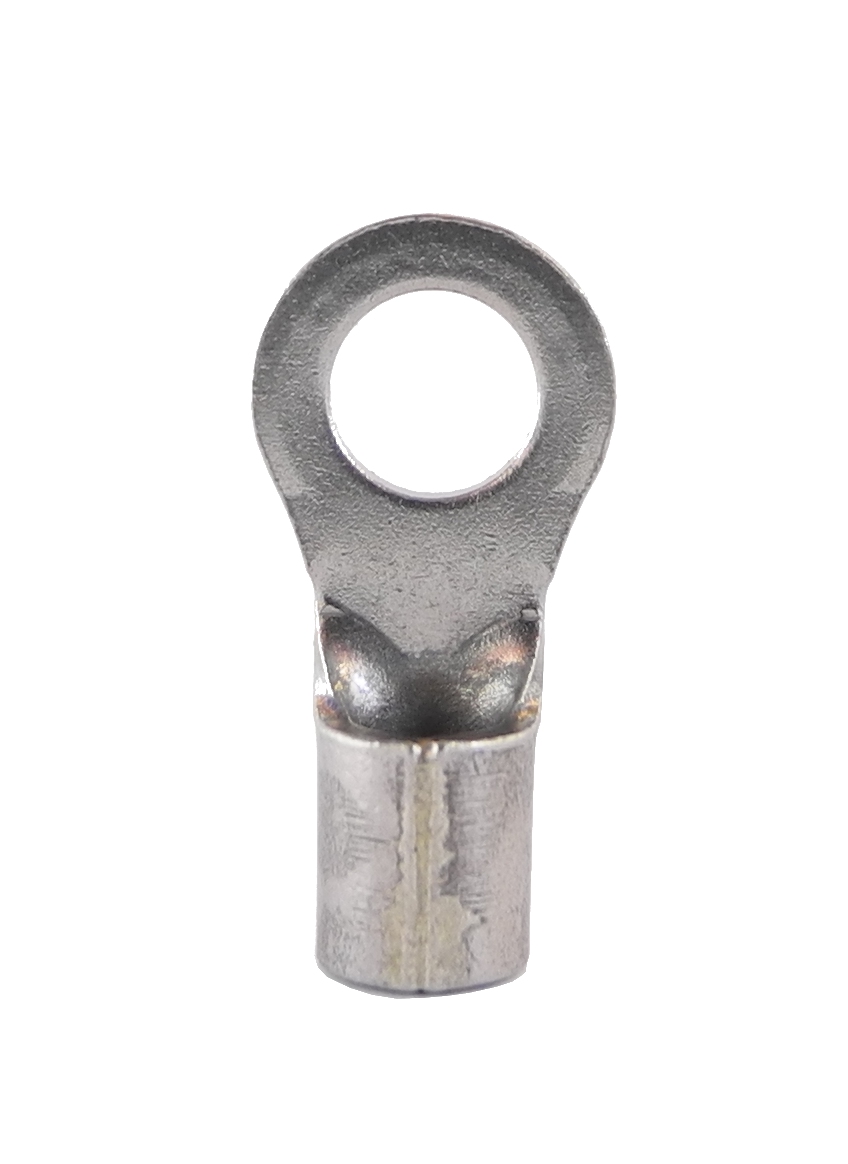

UNINSULATED RING TERMINAL 2.6-6.6mm2, M5, NICKEL
BN 6053 R
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
Product Properties
| Reel/roll packaging | No |
|---|---|
| Max. current (Imax) | 48 A |
| Flange shape | Ring shape |
| According to DIN | No |
| Insulation | None |
| Colour insulation | Other |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Nickel-plated |
| Operating temperature | -55-400 °C |
| Material | Nickel |
| Neck type | Welded |
Dimensions
| HS | 5.3 mm |
|---|---|
| ID | 3.4 mm |
| OD | 5.6 mm |
| T | 1 mm |
| P1 | 8.3 mm |
| L | 19.5 mm |
| N | 6.5 mm |
| W | 9.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Bolt dimension (metric) | 5 . |
| Nominal cross section | 2.6-6.6 mm² |
Logistics
| Barcode | 733117613657 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | BN 6053 R |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E44245 |
|---|---|
| Approved according to CE | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Uninsulated Ring Terminals - Welded |
| Search Description | NICHIFU, N5.5-5 |
| Alternative SKU | BN6053R |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
