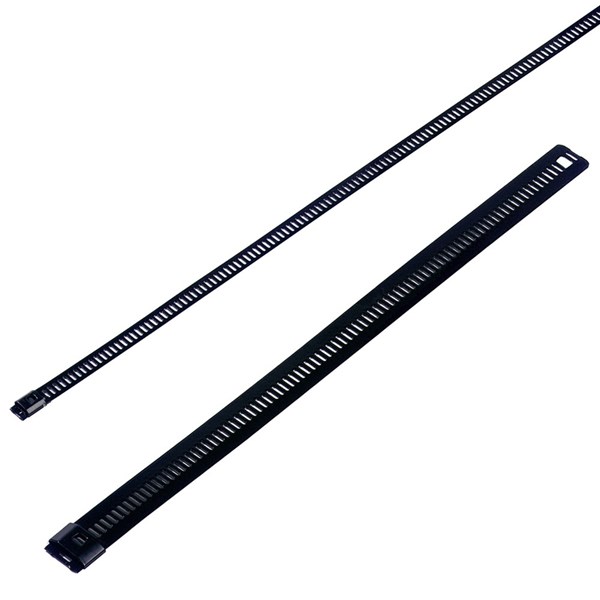

AE, ladder type, with coated ties
Steel cable ties designed for applications with extremely high strength requirements. The tie has high mechanical and chemical sustainability and is completely fireproof. A newly designed powerful lock function involves the extremely high strength.
The material is stainless steel type 316.
The band has a nylon coating that meets the requirements of UL94V-2 (applies to AE 611 to AE 715).
Approved by Germanischer Lloyd and Det Norske Veritas.
Technical properties
- Detectable:
- No
- Min. tensile strength:
- 1110 N
- Model:
- Without toothing
- Material quality:
- Stainless steel 316 (V4A)
- Operating temperature:
- -80-150 °C
- Mounting temperature:
- -80-150 °C
- Band closure:
- Slot grid
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Black
- Surface protection:
- Plastic-coated
- Material:
- Metal
- Halogen free:
- Yes
- Packaging:
- Loose piece
- Max. tensile force:
- 1110 N
Show more
Item List
- Total: 10
- Total: 10
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 10
| Product Description | Bundle diameter | MOQ | Unit | Length belt/tape/tie | Tie thickness | Band width | Max. bundle diameter | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 150x7.0mm SS316, COATED | 100 . | pcs | 150 mm | 0.41 mm | 7 mm | 33 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 225x7.0mm SS316, COATED | 100 . | pcs | 225 mm | 0.41 mm | 7 mm | 57 mm | 1110 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 300x7.0mm SS316, COATED | 20-95 mm | 100 . | pcs | 300 mm | 0.41 mm | 7 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 450x7.0mm SS316, COATED | 100 . | pcs | 450 mm | 0.41 mm | 7 mm | 129 mm | 1110 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 610x7.0mm SS316, COATED | 100 . | pcs | 610 mm | 0.41 mm | 7 mm | 180 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 150x12mm SS316, COATED | 100 . | pcs | 150 mm | 0.46 mm | 12 mm | 33 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 225x12mm SS316, COATED | 100 . | pcs | 225 mm | 0.46 mm | 12 mm | 57 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 300x12mm SS316, COATED | 100 . | pcs | 300 mm | 0.46 mm | 12 mm | 81 mm | 1110 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 450x12mm SS316, COATED | 100 . | pcs | 450 mm | 0.46 mm | 12 mm | 129 mm | 1110 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 610x12mm SS316, COATED | 100 . | pcs | 610 mm | 0.46 mm | 12 mm | 180 mm | 1110 N |
No
|
|
|
- Total: 10
Similar Options
Approvals
- Total: 10
| Product Description | Approved according to Lloyd's Register TA | MIL approval | VG approval | UL approval | Inflammability class of insulation material according to with UL94 | Approved according to DNV | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 150x7.0mm SS316, COATED | Yes | No | No | No |
|
|
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 225x7.0mm SS316, COATED | Yes | No | No | No |
|
|
No
|
|
|
| STAINLESS STEEL CABLE TIE, 300x7.0mm SS316, COATED | Yes | No | No | No |
|
|
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 450x7.0mm SS316, COATED | Yes | No | No | No |
|
|
No
|
|
|
| STAINLESS STEEL CABLE TIE, 610x7.0mm SS316, COATED | Yes | No | No | No |
|
|
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 150x12mm SS316, COATED | Yes | No | No | No |
|
|
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 225x12mm SS316, COATED | Yes | No | No | No |
|
|
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 300x12mm SS316, COATED | Yes | No | No | No |
|
|
No
|
|
|
| STAINLESS STEEL CABLE TIE, 450x12mm SS316, COATED | Yes | No | No | No |
|
|
No
|
|
|
| STAINLESS STEEL CABLE TIE, 610x12mm SS316, COATED | Yes | No | No | No |
|
|
No
|
|
|
- Total: 10
Technical Properties
- Total: 10
| Product Description | Detectable | Min. tensile strength | Model | Material quality | Operating temperature | Mounting temperature | Band closure | UV-stable acc. ASTM D6779 | Transparent | Fluorescent | Solvable fastener | Text strip | Type of fastening | Colour | Surface protection | Material | Halogen free | Packaging | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 150x7.0mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 225x7.0mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 300x7.0mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 450x7.0mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 610x7.0mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 150x12mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 225x12mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 300x12mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 450x12mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 610x12mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Slot grid | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
- Total: 10
Other information
- Total: 10
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 150x7.0mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-7-150-BC, 7TCG009450R0218 | AE611 |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 225x7.0mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-7-225-BC, 7TCG009450R0220 | AE612 |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 300x7.0mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-7-300-BC, 7TCG009450R0222 | AE613 |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 450x7.0mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-7-450-BC, 7TCG009450R0223 | AE614 |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 610x7.0mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-7-610-BC, 7TCG009450R0225 | AE615 |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 150x12mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-12-150-BC, 7TCG009450R0210 | AE711 |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 225x12mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-12-225-BC, 7TCG009450R0211 | AE712 |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 300x12mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-12-300-BC, 7TCG009450R0213 | AE713 |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 450x12mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-12-450-BC, 7TCG009450R0215 | AE714 |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 610x12mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLD-12-610-BC, 7TCG009460R0144 | AE715 |
No
|
|
|
- Total: 10
