25-8 G

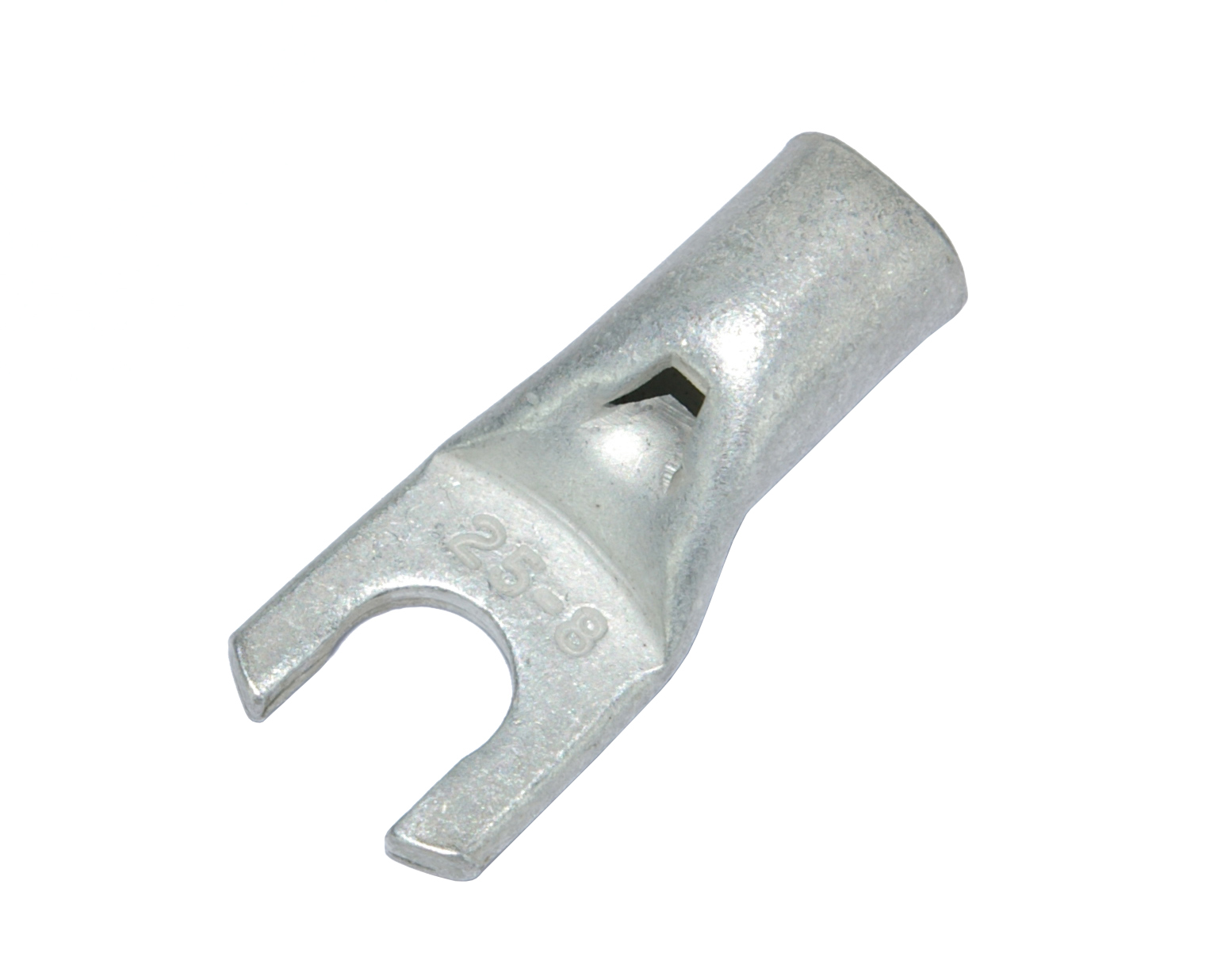

CABLE LUG KR, SPADE 25mm2, M8
25-8 G
- Availability:
-
Yes
- Total: 1
Related items
KRF - 10-25mm²
Fork terminals.
Material: 99.9% pure copper
Surface: > 4mc Sn
Inscriptions on the lugs palm can for ie be: 4-6
4 = 4 mm² wire // 6 = M6 stud size.
- Total: 1
Product Properties
| Suitable for Class 5 conductor | Yes |
|---|---|
| Suitable for Class 6 conductor | Yes |
| Insulated | No |
| Max. current (Imax) | 124 A |
| Number of mounting holes | 1 . |
| Flange shape | Fork shape |
| Colour insulation | Other |
| Slender flange model | No |
| With sight-hole | Yes |
| Conductor category | Several |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Connecting angle | 180° (horizontal) |
| Series | KR/KS (0.75-6mm2) |

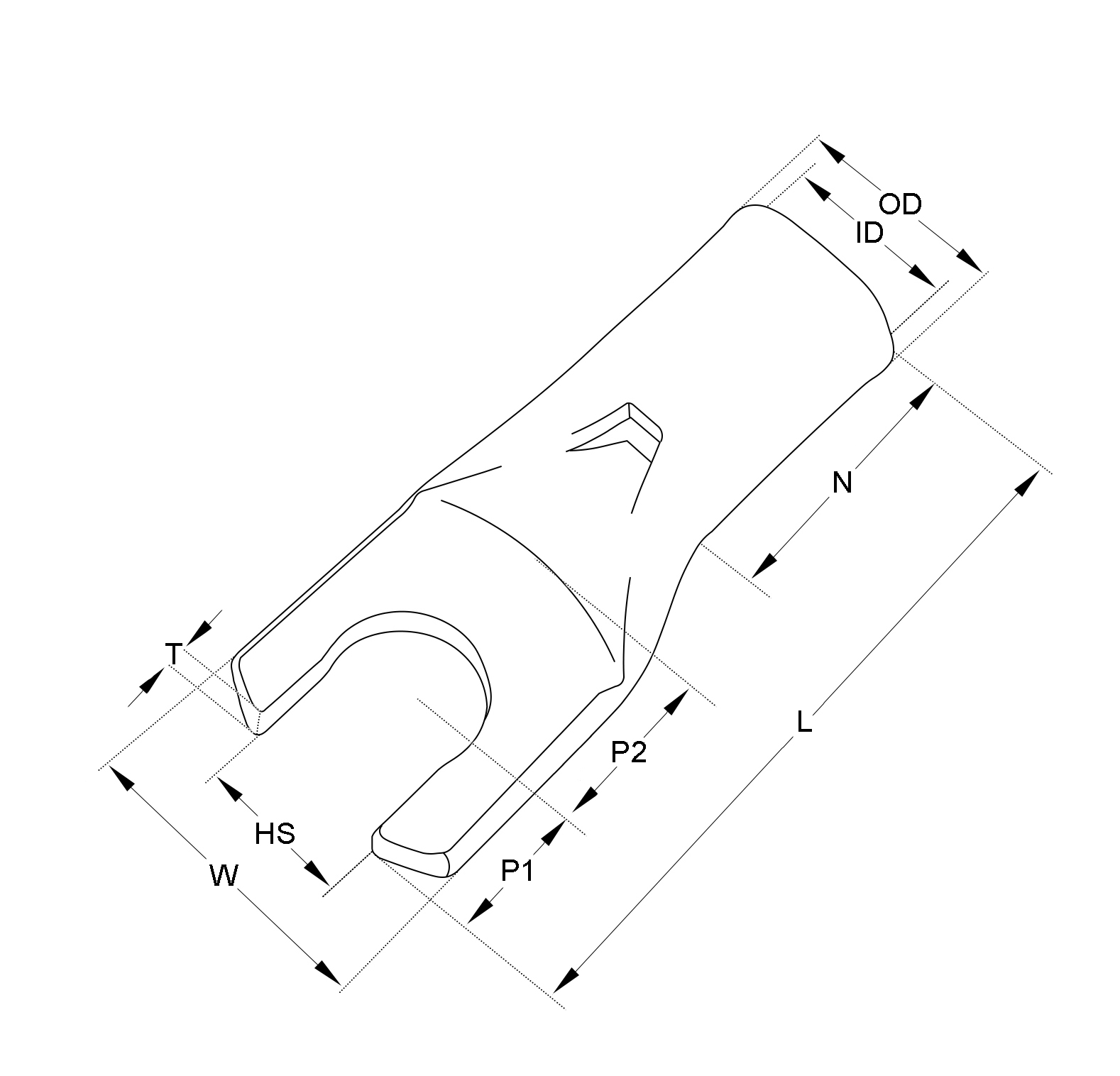

Dimensions
| HS | 8.5 mm |
|---|---|
| ID | 8 mm |
| OD | 11 mm |
| T | 2.8 mm |
| P1 | 8 mm |
| P2 | 9 mm |
| L | 38 mm |
| N | 14 mm |
| W | 16 mm |
| MOQ | 100 . |
| Unit | pcs |
| Bolt dimension (metric) | 8 . |
| Nominal cross section | 25 mm² |
Logistics
| Barcode | 733117612534 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | 25-8 G |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to DNV | Yes |
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Fork cable lug |
| Search Description | RÖRKABELSKO KRF, GAFFEL |
| Alternative SKU | 25-8G |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN Primary Classification | CIVIL |
| ECCN Export Control Code Number | N/A |
