04005

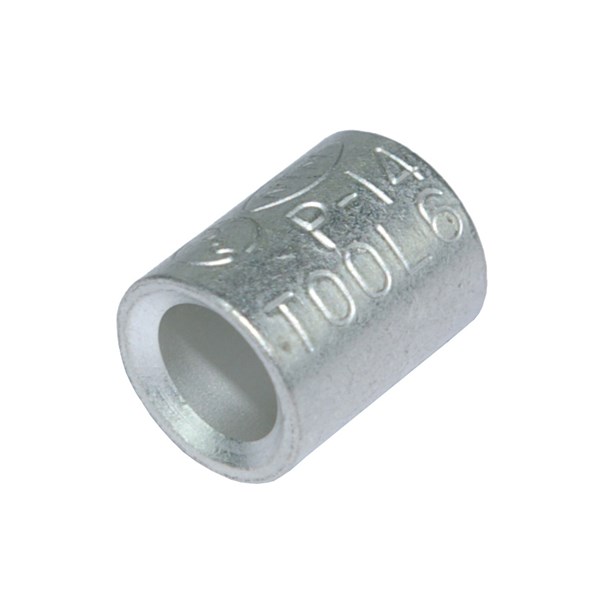

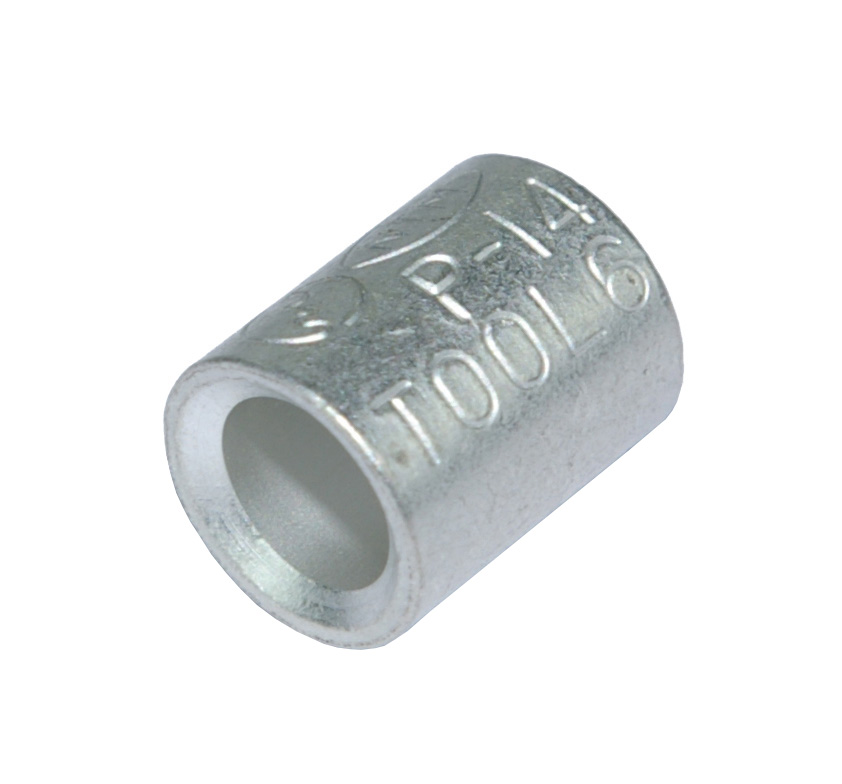

UNINSUATED PARALLEL SPLICE 16mm2
04005
- Availability:
-
Yes
- Total: 1
Related items
Parallellskarvar
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Tillverkad av rör.
- Total: 1
Product Properties
| Model | UL model |
|---|---|
| Number of branches | 0 N/A |
| Insulation | None |
| Colour insulation | N/A |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 35 kV |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Surface protection | Tinned |
| Operating temperature | 110 °C |
| Material | Copper |
| Packaging | Loose piece |
Dimensions
| Max. AWG-size | 6 |
|---|---|
| Min. AWG-size | 6 |
| ID | 5.8 mm |
| OD | 8.9 mm |
| L | 11 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 16 mm² |
| AWG-range | 6 . |
Logistics
| Barcode | 733117613312 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | 04005 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E44245 |
|---|---|
| Approved according to CE | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Uninsulated Parallel splices |
| Search Description | NICHIFU, P-14 |
| Alternative SKU | 04005 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
