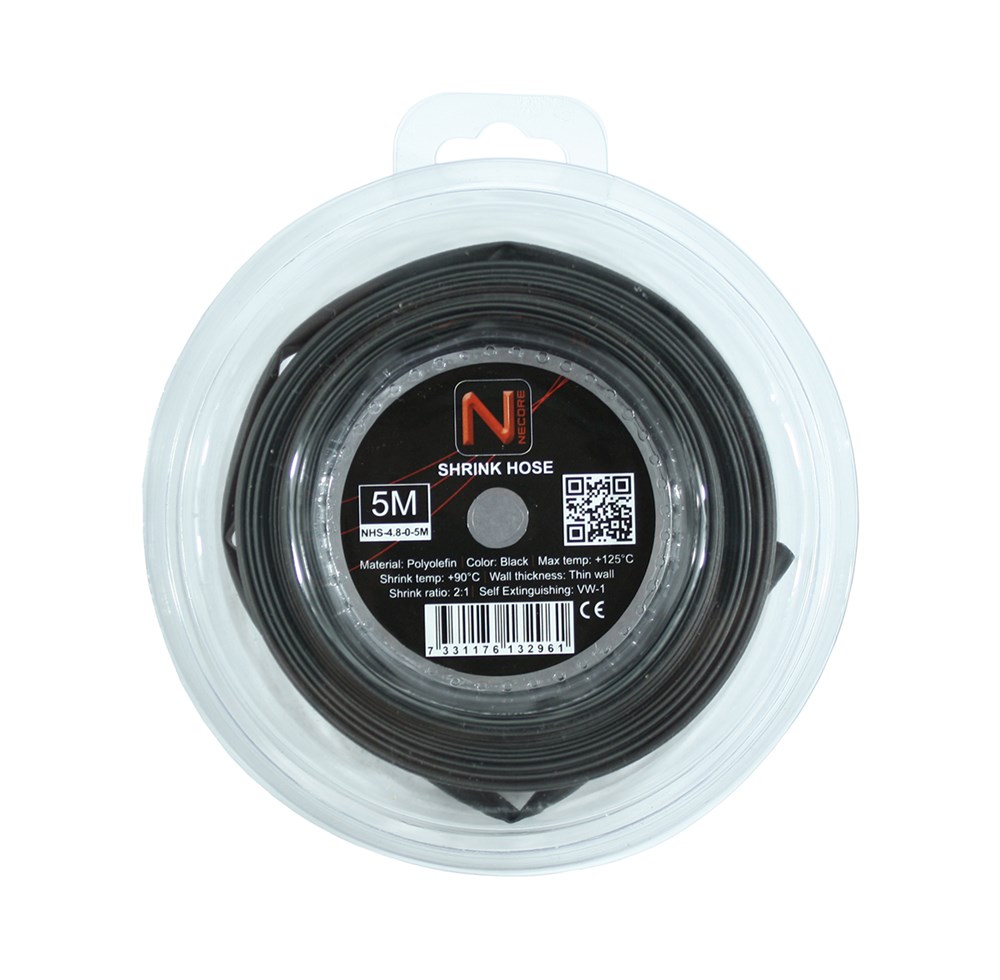

NHS 2:1, without adhesive, blister pack
Standard heat shrink tubing with shrink ratio 2:1
Applications:
Electrical insulation, strain relief, bundling, mechanical protection, colour coding of wires, cables, tubes and electronic components.
Blister pack.
Material: Polyolefin
Colour: Black
Temperature range: Max. +125° C (+257° F)
Lowest shrink temperature: +90° C (+194° F)
Wall thickness: Thin wall
Shrink ratio: 2:1
Self-extinguishing: VW-1
Technical properties
- Model:
- Thin-walled
- Operating temperature:
- -55-125 °C
- Transparent:
- No
- Type:
- Heat-shrink
- Shrink rate:
- 2:1
- With inner glue:
- No
- Printable:
- No
- Colour:
- Black
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
- Packaging:
- Assortment
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | Wall thickness after shrinking | MOQ | Unit | Length | Nominal diameter inch | Inner diameter before heat-shrink | Inner diameter after heat-shrink | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, L=5m, THIN-W | 0.65 mm | 1 . | pck | 5 m | 1/2 inch | 12.5 mm | 6.25 mm |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=4.8mm BLACK, L=5m, THIN-W | 0.55 mm | 1 . | pck | 5 m | 3/16 inch | 4.8 mm | 2.4 mm |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=19.1mm BLACK, L=2.5m, THIN-W | 0.8 mm | 1 . | pck | 2.5 m | 3/4 inch | 18.7 mm | 9.35 mm |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=3.2mm BLACK, L=8m, THIN-W | 0.4 mm | 1 . | pck | 8 m | 1/8 inch | 3.5 mm | 1.75 mm |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=6.4mm BLACK, L=3m, THIN-W | 0.55 mm | 1 . | pck | 3 m | 1/4 inch | 6.5 mm | 3.25 mm |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Approved according to CSA STYLE 20222-E | Approved according to UR | UL approval | Approved according to CSA | Availability | ||
|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, L=5m, THIN-W | Yes |
|
No |
|
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=4.8mm BLACK, L=5m, THIN-W |
|
No |
|
Yes
|
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=19.1mm BLACK, L=2.5m, THIN-W |
|
No |
|
Yes
|
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=3.2mm BLACK, L=8m, THIN-W |
|
No |
|
Yes
|
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=6.4mm BLACK, L=3m, THIN-W |
|
No |
|
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Model | Operating temperature | Transparent | Type | Shrink rate | With inner glue | Printable | Colour | Material | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, L=5m, THIN-W | Thin-walled | -55-125 °C | No | Heat-shrink | 2:1 | No | No | Black | Polyolefin (PO-X) | No | Assortment |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=4.8mm BLACK, L=5m, THIN-W | Thin-walled | -55-125 °C | No | Heat-shrink | 2:1 | No | No | Black | Polyolefin (PO-X) | No | Assortment |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=19.1mm BLACK, L=2.5m, THIN-W | Thin-walled | -55-125 °C | No | Heat-shrink | 2:1 | No | No | Black | Polyolefin (PO-X) | No | Assortment |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=3.2mm BLACK, L=8m, THIN-W | Thin-walled | -55-125 °C | No | Heat-shrink | 2:1 | No | No | Black | Polyolefin (PO-X) | No | Assortment |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=6.4mm BLACK, L=3m, THIN-W | Thin-walled | -55-125 °C | No | Heat-shrink | 2:1 | No | No | Black | Polyolefin (PO-X) | No | Assortment |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, L=5m, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Retailer Concepts & Assortments | NHS-12.7-0-5M |
Yes
|
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=4.8mm BLACK, L=5m, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Retailer Concepts & Assortments | NHS-4.8-0-5M |
Yes
|
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=19.1mm BLACK, L=2.5m, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Retailer Concepts & Assortments | KRYMPSLANG UTAN LIM, 2:1, ID=19.1MM, SVART | NHS-19.1-0-2.5M |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=3.2mm BLACK, L=8m, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Retailer Concepts & Assortments | KRYMPSLANG UTAN LIM, 2:1, ID=3.2MM, SVART | NHS-3.2-0-8M |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=6.4mm BLACK, L=3m, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Retailer Concepts & Assortments | KRYMPSLANG UTAN LIM, 2:1, ID=6.4MM, SVART | NHS-6.4-0-3M |
Yes
|
|
|
- Total: 5
