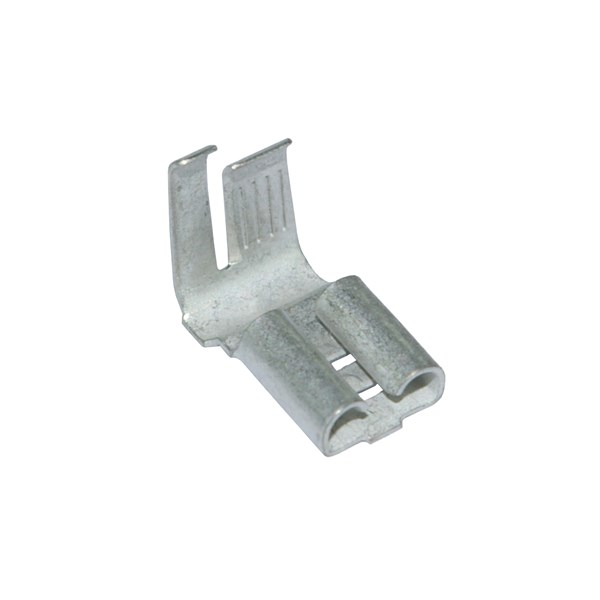

Flaggkabelskor
FLB (orullad)
Material: Mässing
Ytbehandling: > 4mc Sn
Temperaturområde: -10 - 110° C
Technical properties
- Model:
- Bushing
- Max. current (Imax):
- 15 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -10-110 °C
- Material:
- Brass
- Neck type:
- Open barrel crimp
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED FLAG FEMALE DISCONNECTORS UN-ROLLED, 1.5-2.5mm2, 6.3x0.8mm | 100 . | pcs | 1.5-2.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| UNINSULATED FLAG FEMALE DISCONNECTORS UN-ROLLED, 1.5-2.5mm2, 6.3x0.8mm |
|
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Neck type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED FLAG FEMALE DISCONNECTORS UN-ROLLED, 1.5-2.5mm2, 6.3x0.8mm | Bushing | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp | Loose piece |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| UNINSULATED FLAG FEMALE DISCONNECTORS UN-ROLLED, 1.5-2.5mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Flag female disconnectors - Loose Pieces | B2507FLB-8 |
Yes
|
|
|
- Total: 1
