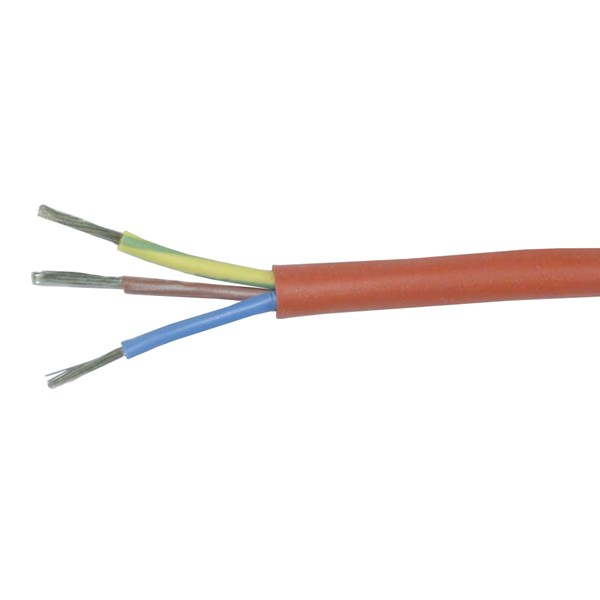

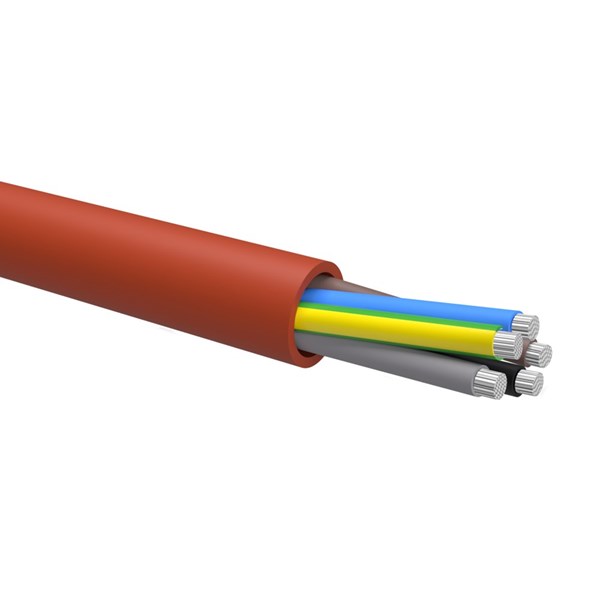

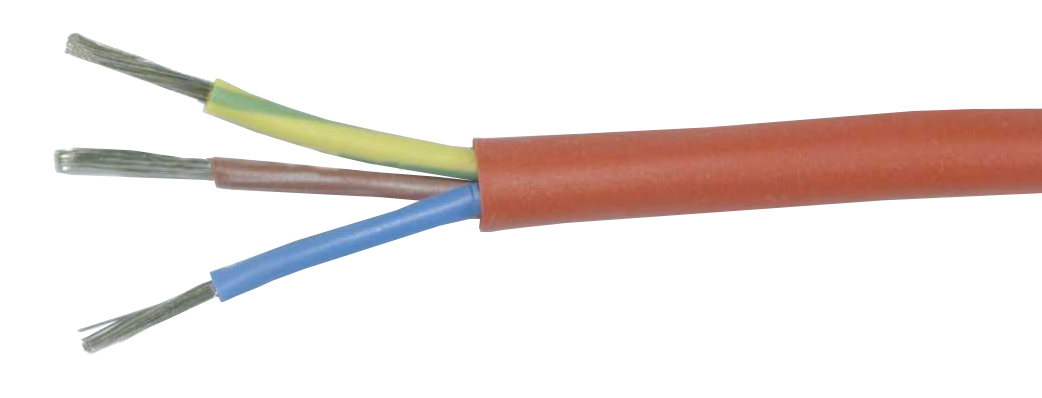

SIHF, Silikonkabel

Silikon-mantlade flerledarkablar erbjuder elingenjörer och elektriker ett fantastiskt utbud av alternativ.
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installataion i offentliga byggnader.

Uppbyggnad
Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna färgmärkta tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Röd-Brun.
Flamhämmande.

Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie:
Flexibel: 12 x kabeldiametern
Fast: 4 x kabeldiametern

Godkännanden, Flambeständighet VDE 0295.VDE 0293.VDE 0293-308IEC 60332-1-2 (F2)

Visa kopplade artiklar

Produktegenskaper

Ader-Zahl:
4 ., 2 ., 3 ., 5 ., 7 .
Werkstoff der Aderisolation:
Gummi
Spezifizierung Aderisolation:
Gummi - Silikon-Kautschuk (SIR)
Ader-Kennzeichnung:
Farbe
Schutzleiter:
Nein
Mantelmaterial:
Gummi
Spezifizierung Mantelmaterial:
sonstige
Mantel-Farbe:
rot
Flammwidrig:
nach IEC/EN 60332-1-2
Zul. Kabelaußentemperatur nach Montage ohne Erschütterung:
-60-180 °C
Leiter-Material:
Kupfer
Adern verdrillt:
Nein
Zul. max. Leitertemperatur:
180 °C
Schirm:
Nein
Bewehrung/Armierung:
ohne
Beidraht:
Nein
Nennspannung:
500 V
Halogenfrei nach EN 60754-1/2:
Nein, Ja
Leiter-Klasse:
Kl.5 = feindrähtig
Farbe:
Braun/rot
Werkstoff der Isolation:
Silikon
Einsatztemperatur:
-50-180 °C
Ader-Farbe:
rot, verschiedene
Leiter-Oberfläche:
blank, verzinnt
Halogenfrei:
Nein
Min. zulässiger Biegeradius, stationärer Einsatz/fest verlegt:
88 mm, 77.6 mm, 25.6 mm, 27.2 mm, 34 mm, 36.8 mm, 30.4 mm, 32 mm, 35.2 mm, 38.4 mm, 41.6 mm, 42.4 mm, 58.8 mm, 50.4 mm, 28 mm

Visa mer

  • Total: 15

050448

Verfügbarkeit:
Nein

050541

Verfügbarkeit:
Ja

050449

Verfügbarkeit:
Nein

050501

Verfügbarkeit:
Ja

050503

Verfügbarkeit:
Ja

050504

Verfügbarkeit:
Nein

050510

Verfügbarkeit:
Nein

050511

Verfügbarkeit:
Ja

050512

Verfügbarkeit:
Nein

050513

Verfügbarkeit:
Nein

050514

Verfügbarkeit:
Nein

050520

Verfügbarkeit:
Nein

050529

Verfügbarkeit:
Nein

050531

Verfügbarkeit:
Nein

050500

Verfügbarkeit:
Ja
  • Total: 15

Manuals, Datasheets, Sketches & Drawings

  • Total: 15
Produkt Verfügbarkeit
SIHF, 4G16.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G10.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 5G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 7G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 5G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 7G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G2.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G6.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G4.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
  • Total: 15
  • Total: 15
Produkt Verfügbarkeit
SIHF, 4G16.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G10.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 5G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 7G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 5G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 7G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G2.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G6.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G4.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
  • Total: 15
  • Total: 15
Produkt Verfügbarkeit
SIHF, 4G16.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G10.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 5G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 7G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 5G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 7G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G2.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G6.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G4.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
  • Total: 15
  • Total: 15
Produkt Verfügbarkeit
SIHF, 4G16.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G10.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 5G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 7G0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 3G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
SIHF, 4G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 5G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 7G1.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G2.5mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G6.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 4G4.0mm2, BRUN/RÖD, 500V, SILIKON, 180C
Nein
SIHF, 2x0.75mm2, BRUN/RÖD, 500V, SILIKON, 180C
Ja
  • Total: 15
