N 560

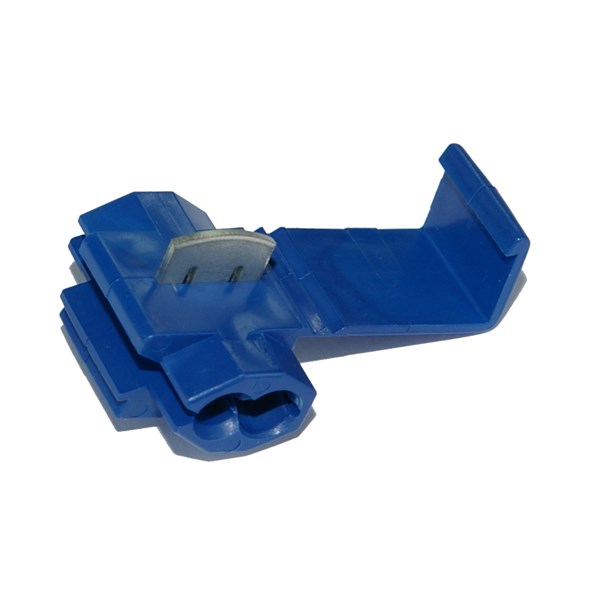

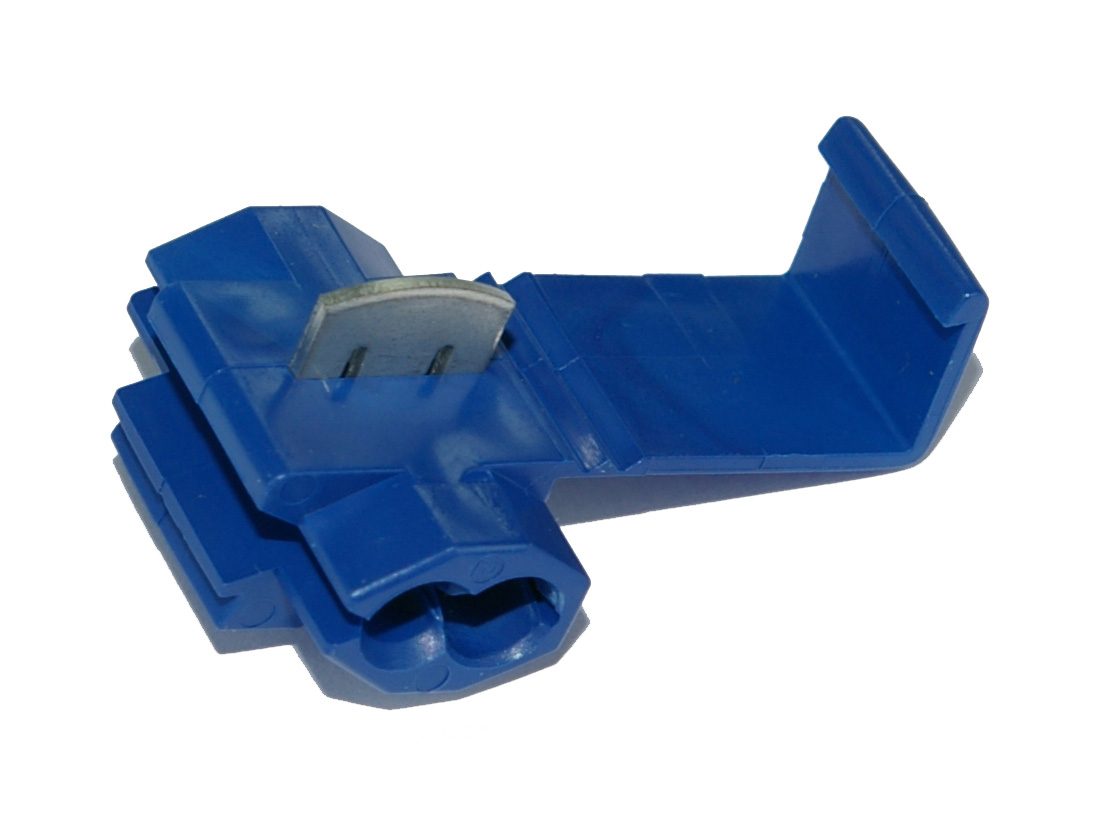

TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-16)
N 560
- Availability:
-
Yes
- Total: 1

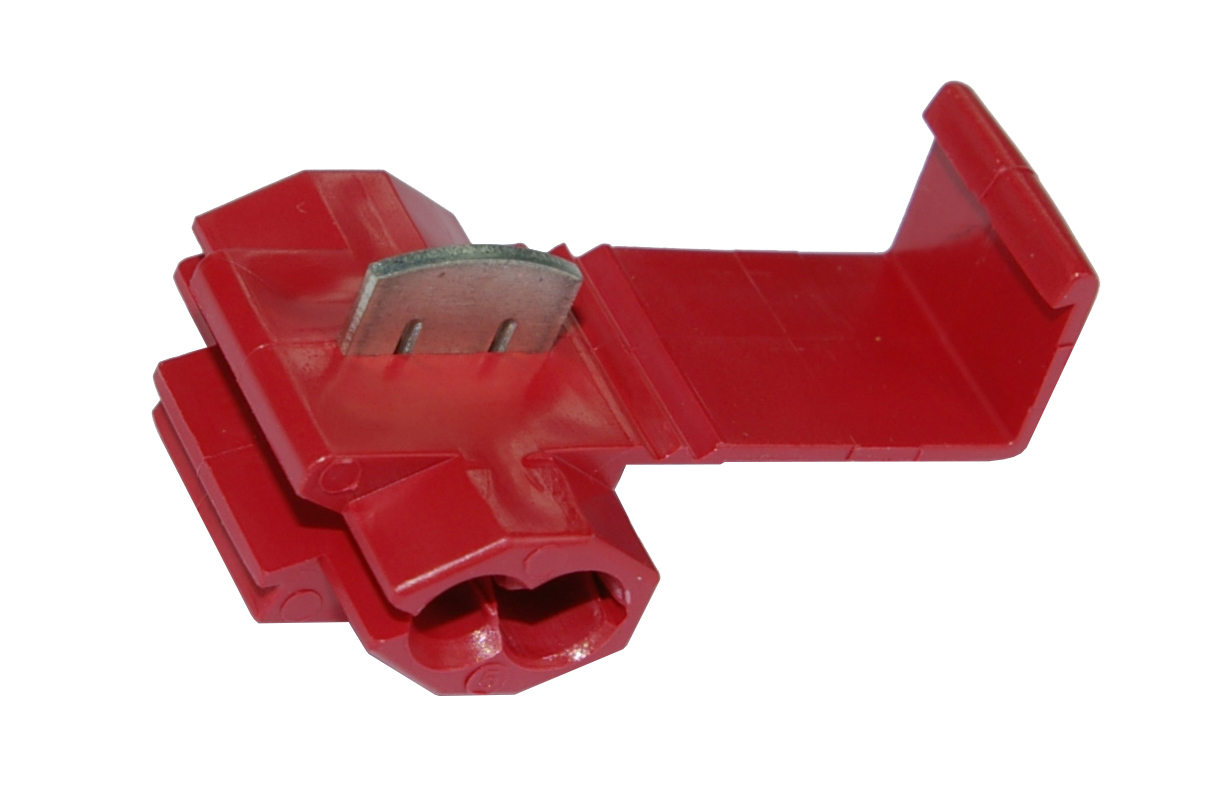

Related items
Self stripping tap connectors
Japanese quality tap connectors.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
- Total: 1
Product Properties
| Model | Branch |
|---|---|
| Colour insulation | Blue |
| Grease filling against corrosion | No |
| Max. number of cores | 2 . |
| Temperature | -40-105 °C |
| Interrupt free shifting | Yes |
| Colour | Blue |
| Material insulation | Polypropylene (PP) |
| Connector type | Spliceing connector |
| Packaging | Loose piece |
| Inflammability class of insulation material according to with UL94 | V2 |
Dimensions
| Core diameter | 1-1.6 mm |
|---|---|
| Max. outer diameter | 3.7 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.75-1.5 mm² |
Logistics
| Barcode | 733117615824 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | N 560 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E44245 |
|---|---|
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC000306 - Low current connector |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Self stripping tap connectors |
| Search Description | NICHIFU, PTV-20 |
| Alternative SKU | N560 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
