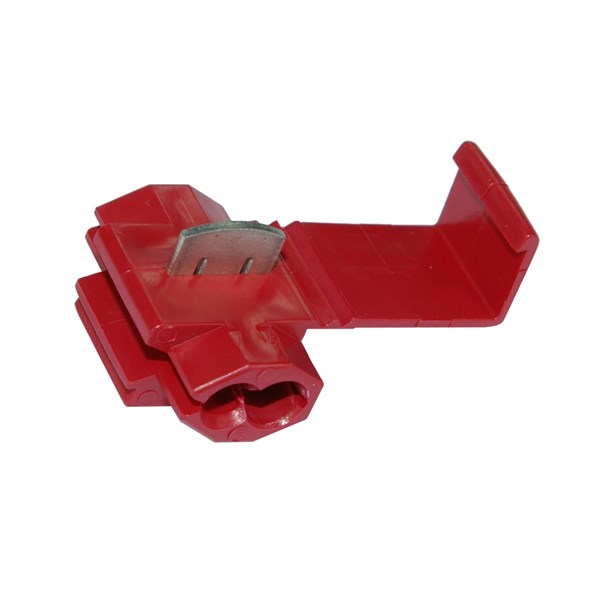

Self stripping tap connectors
Japanese quality tap connectors.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
Technical properties
- Model:
- Branch
- Colour insulation:
- Red, Blue
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- Yes
- Colour:
- Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
- Packaging:
- Loose piece
- Inflammability class of insulation material according to with UL94:
- V2
Show more
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 2
| Product Description | Core diameter | Max. outer diameter | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING RED, 0.5-1.0mm2 (AWG 20-18) | 0.65-1 mm | 3.1 mm | 100 . | pcs | 0.5-1 mm² |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-16) | 1-1.6 mm | 3.7 mm | 100 . | pcs | 0.75-1.5 mm² |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | UL-File No. | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING RED, 0.5-1.0mm2 (AWG 20-18) | E44245 |
|
|
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-16) | E44245 |
|
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Model | Colour insulation | Grease filling against corrosion | Max. number of cores | Temperature | Interrupt free shifting | Colour | Material insulation | Connector type | Packaging | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING RED, 0.5-1.0mm2 (AWG 20-18) | Branch | Red | No | 2 . | -40-105 °C | Yes | Red | Polypropylene (PP) | Spliceing connector | Loose piece |
|
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-16) | Branch | Blue | No | 2 . | -40-105 °C | Yes | Blue | Polypropylene (PP) | Spliceing connector | Loose piece |
|
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING RED, 0.5-1.0mm2 (AWG 20-18) | EC000306 - Low current connector | 9.0 |
|
Self stripping tap connectors | NICHIFU, PTV-09 | N558 |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-16) | EC000306 - Low current connector | 9.0 |
|
Self stripping tap connectors | NICHIFU, PTV-20 | N560 |
Yes
|
|
|
- Total: 2
