BS 80

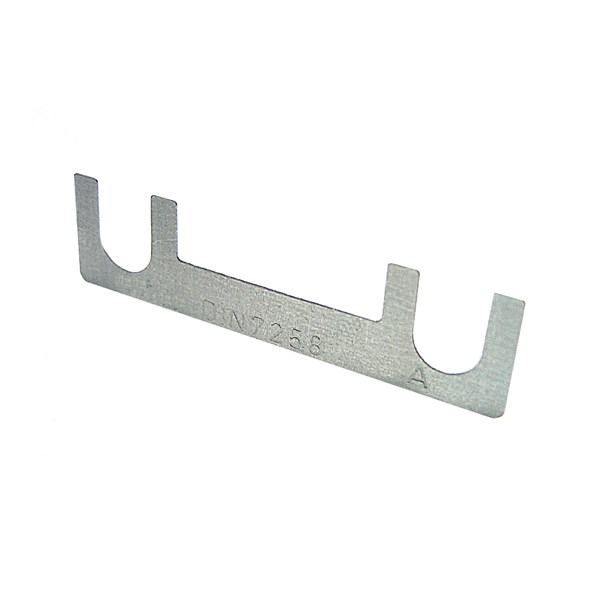

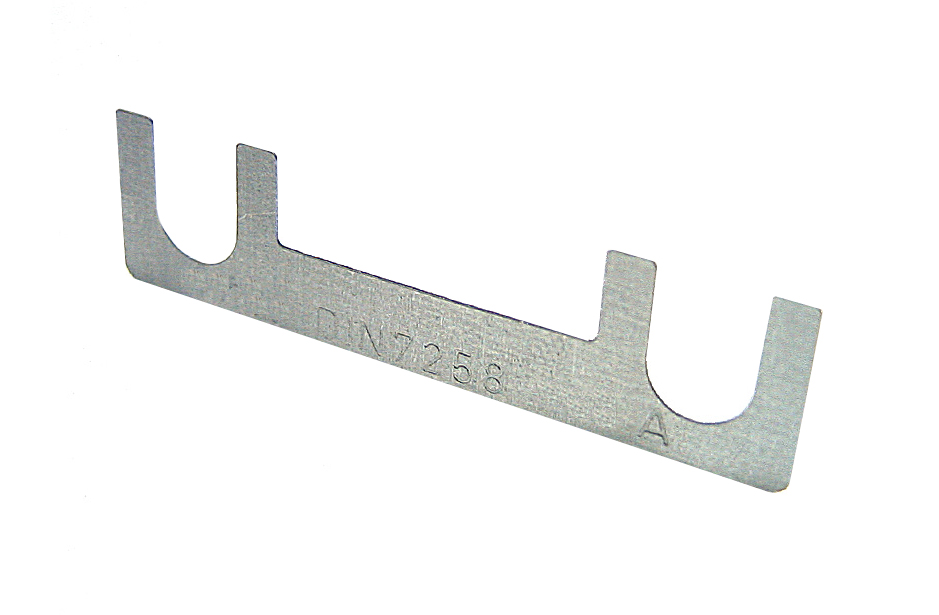

FLAT TYPE FUSE, 80A .
BS 80
- Availability:
-
Yes
- Total: 1
Related items
Bladsäkringar - BS-Series
Bolt-on fuse according to DIN 72581-2
Maximum voltage: 32 V DC
Current rating: 30-100 A
Stud size: M5
CC dimensions: 30 mm
Material: Zinc
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Total: 1
Product Properties
| Explosion-proof | No |
|---|---|
| Release characteristic | Medium time-lag |
| Optical defect indication | Yes |
| Type of current | DC |
| Colour code | Other |
| Nominal voltage DC | 32 V |
| Max. continuous voltage DC | 32 V |
| Max. current (Imax) | 80 A |
| Nominal current | 80 A |
| Fuse type | Bladsäkring |
| Packaging | Loose piece |
Dimensions
| Width | 41 mm |
|---|---|
| MOQ | 100 . |
| Unit | pcs |
| Mounting holes | M5 |
| Centre-to-centre distance of connections | 30 mm |
| Length | 11 mm |
Logistics
| Barcode | 733117611862 |
|---|---|
| Country of origin | TR |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | BS 80 |
| Taric code | 85361090 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC004122 - Strip fuse |
|---|---|
| ETIM-Release | DYNAMIC |
| Product Group | Bolt-on / Strip fuses |
| Alternative SKU | BS80 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
